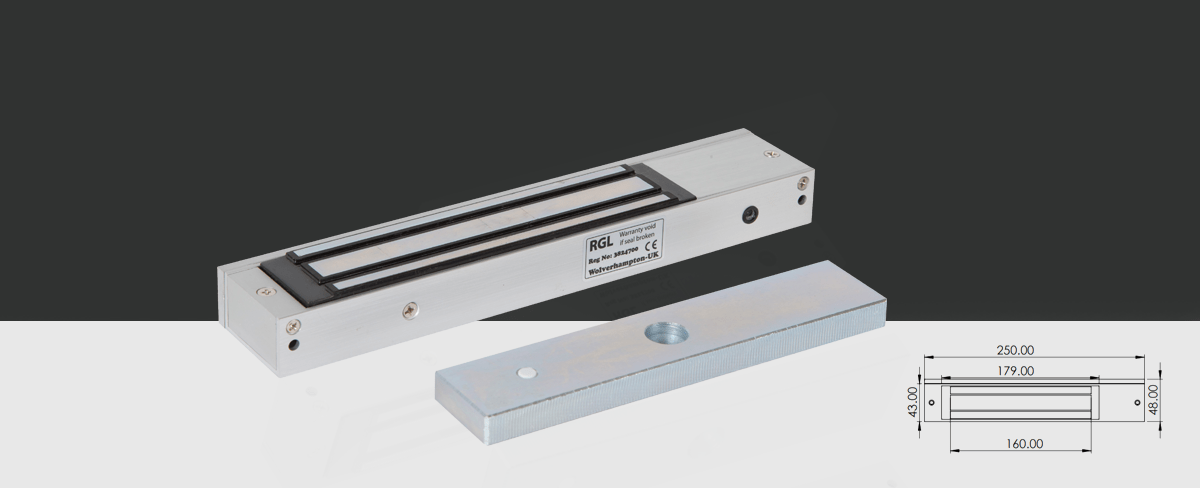

Electro Magnetic Locks – ML600
We are the best supplier of high-quality electromagnetic locks in Dubai, UAE . The ML600 maglock is part of a range of magnetic locks suitable for wooden door types, single version with holding force up to 280kgs. Maglocks are always fail-safe and are used as the locking element within a standalone access control system. They are easy to wire and are adjustable on site.
Features
-
Technical specifications
Aluminium housing.
12/24 VDC @480/240mA.
280kgs (600lb) holding force.
Built in surge protection.
ML600-M = Monitored -
Features
Fire Tested (30 & 60 minute timber door sets)
Slim line mini magnet.
Clean and compact design in aluminium.
Single LED indication on ML600
Multi LED indication on ML600-M
No residual magnetism -
Suitable brackets
BK600ZL (ZL Bracket)
BK600L (L Bracket)
AH600 (Armature Housing)
BK600U (U Bracket Glass Door)
GD600ZL (ZL Glass Door Bracket)
AB600ZL-DC (Architectural ZL Bracket)
BK600-F-L (Architectural FL Bracket)
ADJ600-L (Fully adjustable L Bracket) -
Dimensions
250x42x25 (mm)
Specifications
- Product Code
ML600
- Dimensions
250x42x25 (mm)
- Description
Slimline Magnetic Lock 600lb / 280kg
- Description
FIRE TESTED
- Weight
1.97Kg (Boxed) / 1.13Kg (Unboxed)
