DS1000

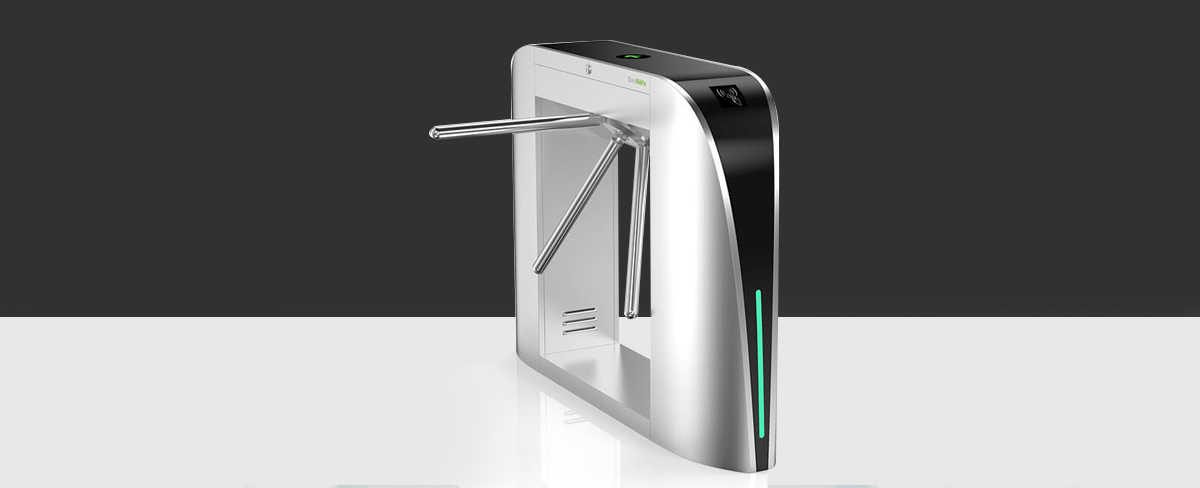

Model DS1000 is a super- elegant and European stylish tripod type solution to control access and time attendance. The model is made of brushed stainless steel and also with black titanium, which makes it looks more unique and artistic than other model. For the body, it’s slim and arc shape, which make it unique and can better protect people from crush injury.Front body is with bright, long and slim LED indication bar to make it more dazzling and attractive.Throughput rate in the single passage mode is 35-40 persons per min.



Features

  • Long-life performance

    Long-life performance, high operation dependability and fast response

  • System Performance

    The whole system runs smoothly, low noise, no mechanical impact

  • Automatic reset function

    Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry

  • Anti-tailing function

    Anti-tailing function: only one person passes at one time

  • Power

    When power is off, arms will open automatically, which is complying with fire safety requirements

Specifications

  • Operation:

  • Single directional or Bi-directional is selectable

  • Framework material

  • 304 quality stainless steel.

  • Arm Length

  • 500mm.

  • MCBF

  • 5 million

  • Emergency Mode

  • Automatic arm open when power off

  • Indicator

  • Led.

  • Communication

  • Dry Contact, Relay signal, RS485

  • Passage Speed

  • 35-40 persons/minute.

  • Passage Width

  • 550mm

  • Power Consumption

  • 40W

  • Operating voltage

  • 24V DC

Download Brochure
